For applications with modest power requirements like cabins, remote communication sites, and backup power systems.

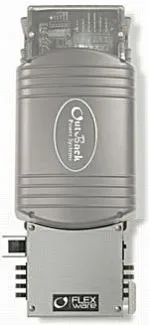

The FLEXware 250 accommodates all of the essential protective devices in the smallest possible space at the lowest installed cost. The FW250 enclosure is designed to mount on either or both ends of an OutBack FX inverter. Smaller systems can include both the DC disconnect and AC input/output breakers in the same enclosure mounted on just the DC end of the inverter. Systems with more AC and DC components should use two FW250 enclosures, one on each end of the inverter. The FW250 system does not require a FLEXware MP mounting plate or the optional DCA or ACA conduit adapters. The FW250 can also be used on multiple inverter systems when installation space is limited.

As with all of the FLEXware systems, order the necessary DC and AC breakers, AC input-output-bypass kits, and all other additional components separately. For single FX Inverter/Charger systems.

This DC and/or AC breaker enclosure - secures directly to either end of an FX Series Inverter/Charger. Includes ground bus bar and DC breaker handle guard. Holds up to eight 1 to 80 Amp, one 175 or 250 Amp panel mount breaker, and a GFCI AC outlet (not included). (DC current shunt not included)
