Description

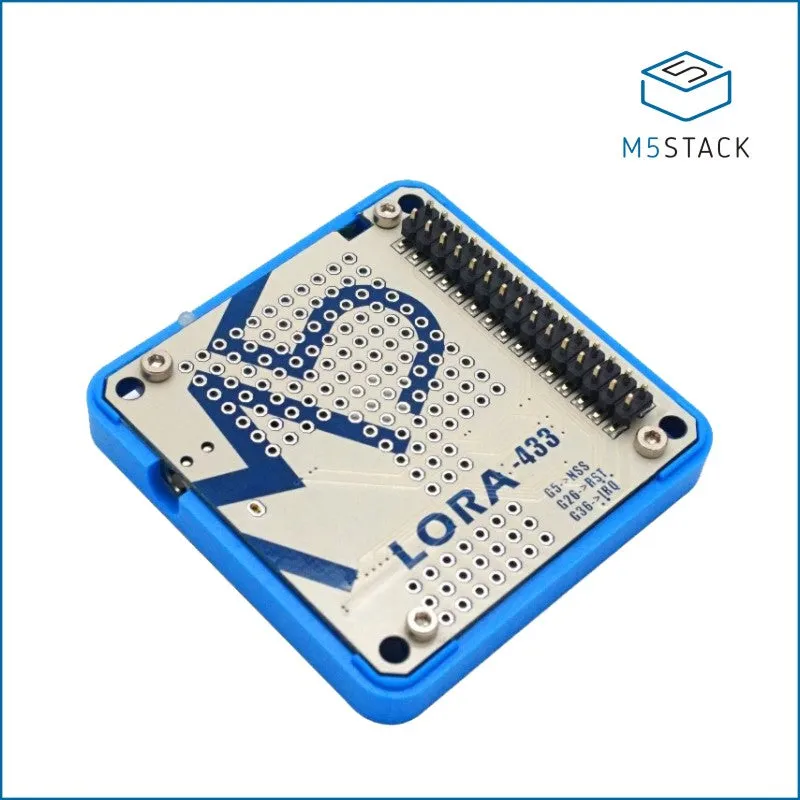

LoRa (433MHz) is a LoRa communication module in the M5Stack stack module series (working frequency is 433MHz). A certain expansion space is reserved on the module, which defeats you for more functional design. For wireless communication or projects with more customized elements, the LoRa (433MHz) module will be a suitable choice.
Product Features

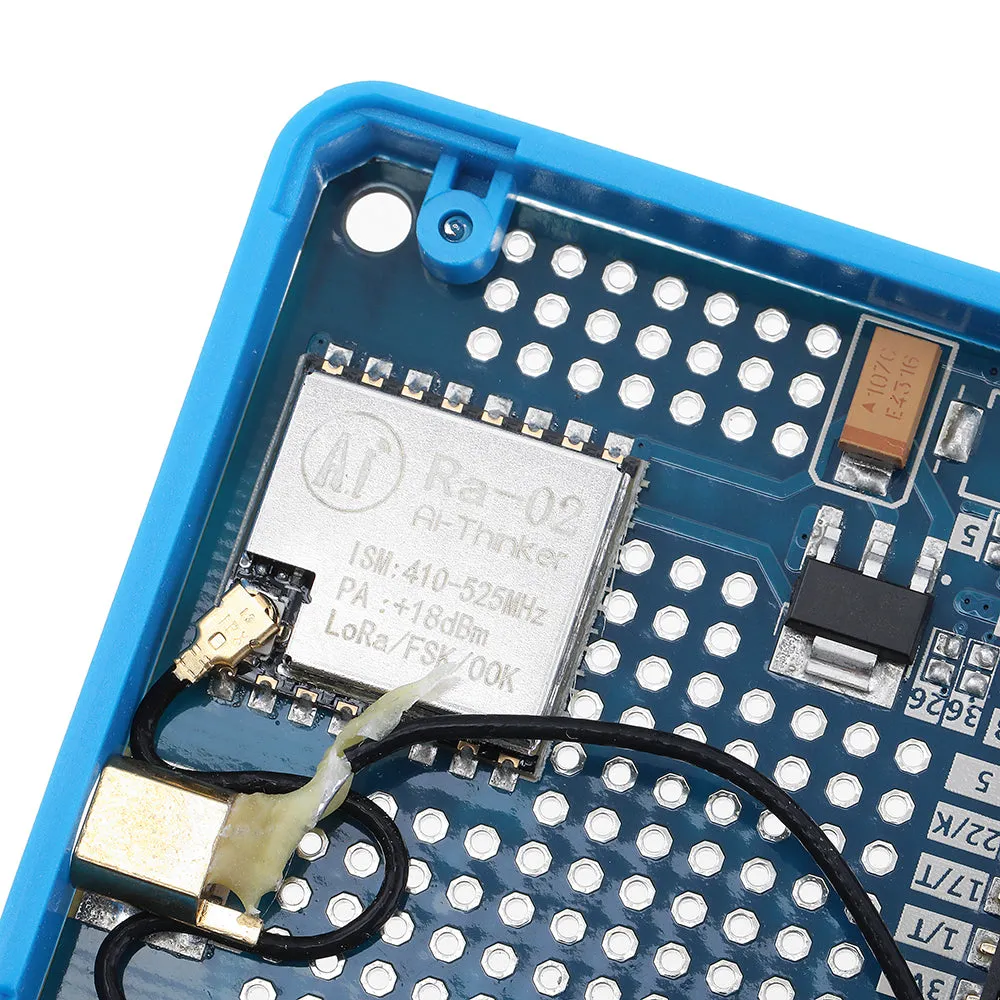

- LoRa (433MHz) Module: Ra-02 (by Ai-Thinker)
- Series Communication Protocol: SPI
- Universal Perboard
- Working Frequency: 433 MHz
- Supports FSK, GFSK, MSK, GMSK, LoRa ™ and OOK modulation modes
- Receive sensitivity: lowest to -141 dBm
- Programmable bit rate up to 300Kbps

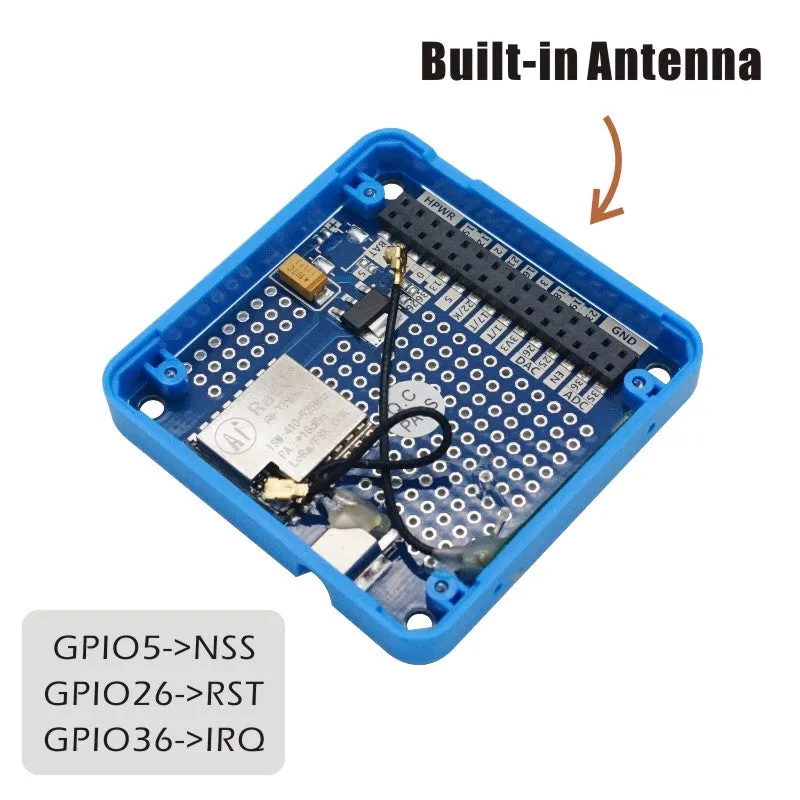

- Build-in PCB Antenna
- External Antenna port
- Program platform: Arduino, MicroPython, UIFlow (Blockly)
Include

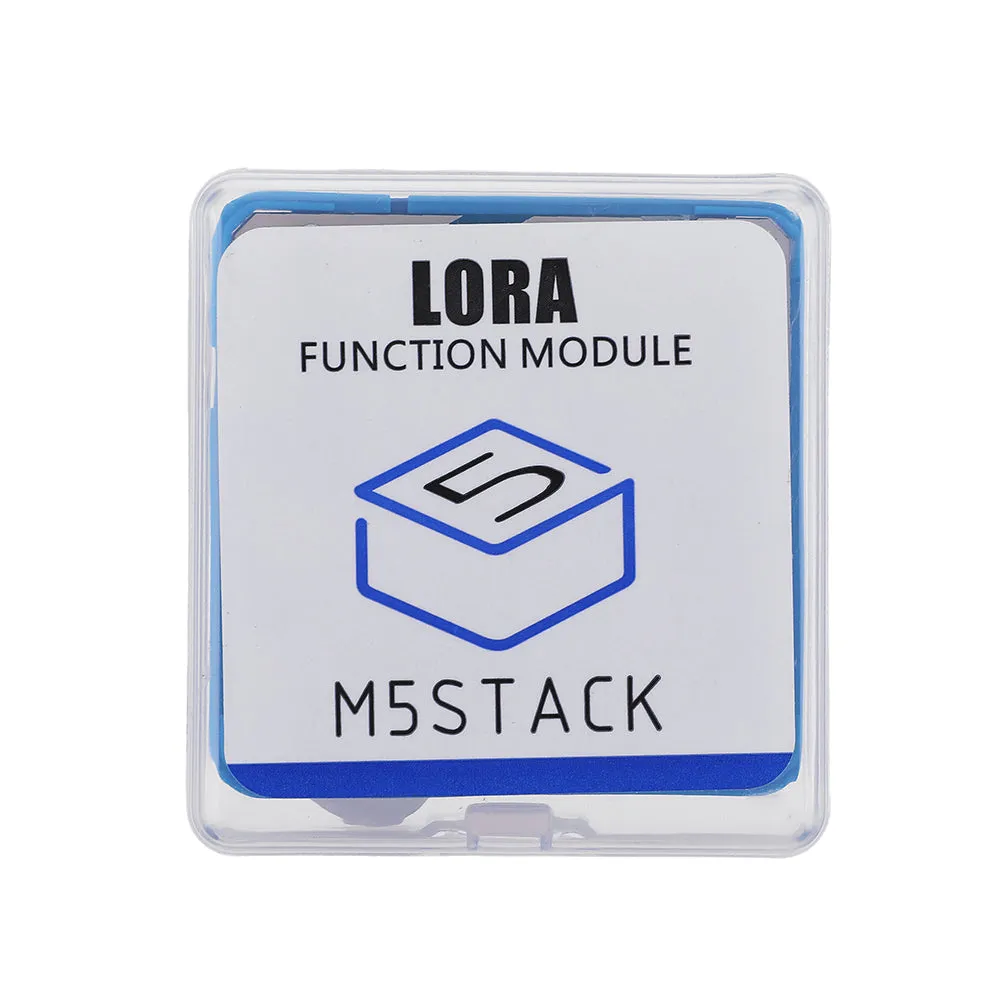

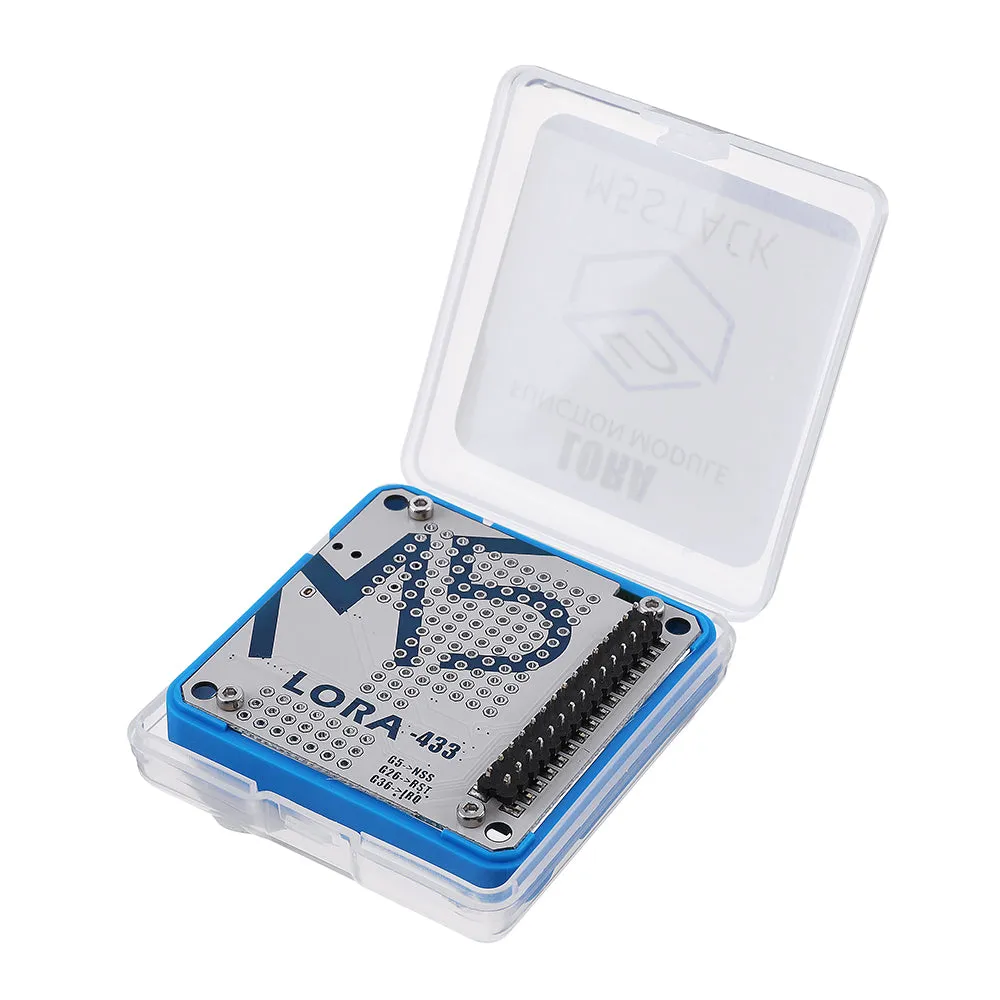

- 1x M5Stack LoRa Module
Applications
- Automatic meter reading
- Home building automation
- Remote irrigation system
Specification
| Resources | Parameter |
|---|---|
| Net weight | 13g |
| Gross weight | 24g |

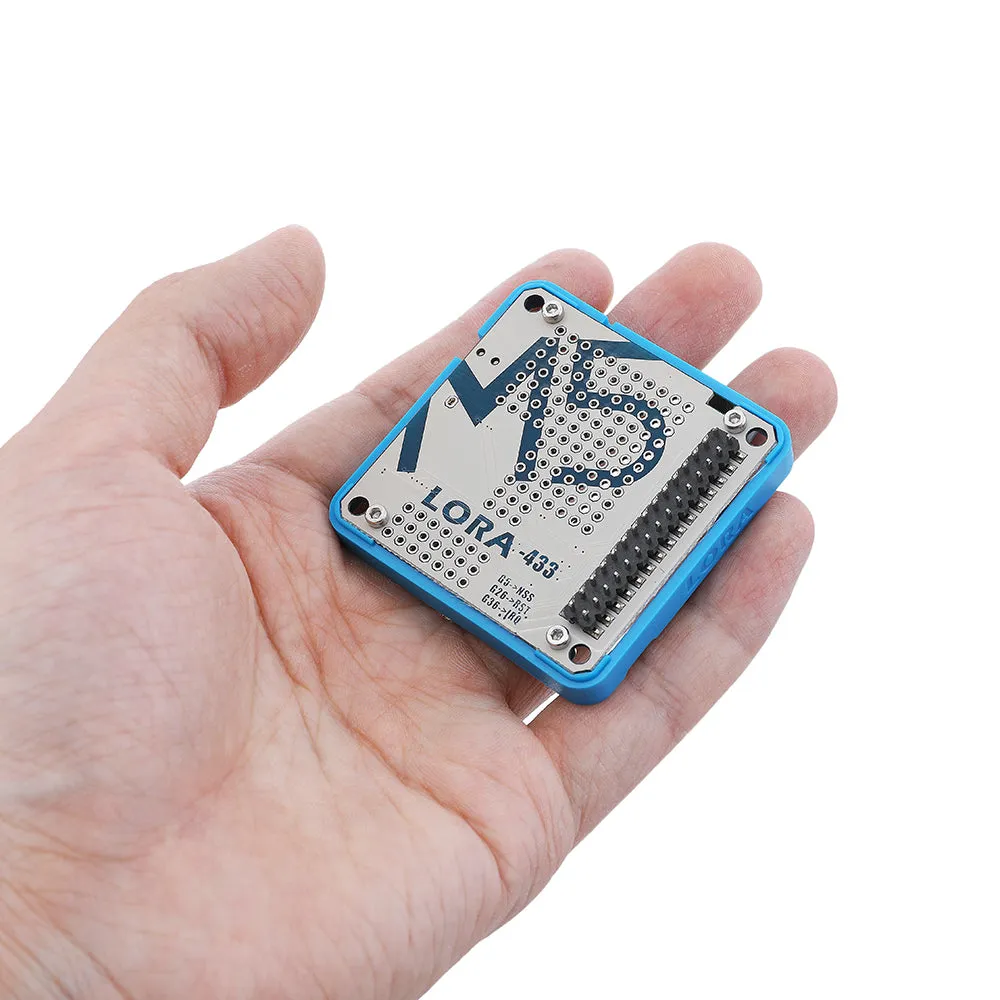

| Product Size | 54.2*54.2*12.8mm |
| Package Size | 60*57*17mm |
