Description

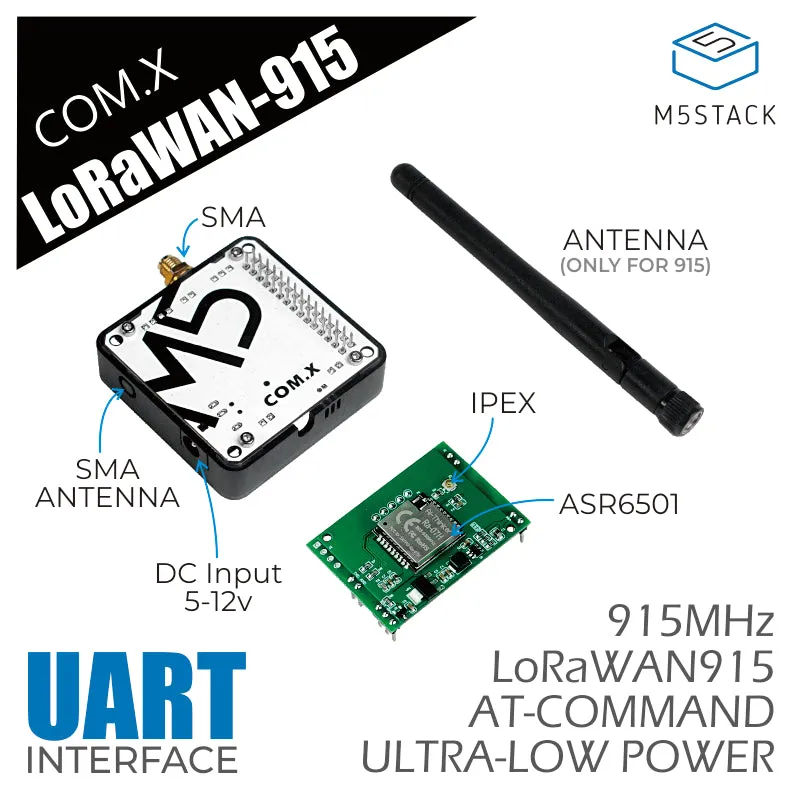

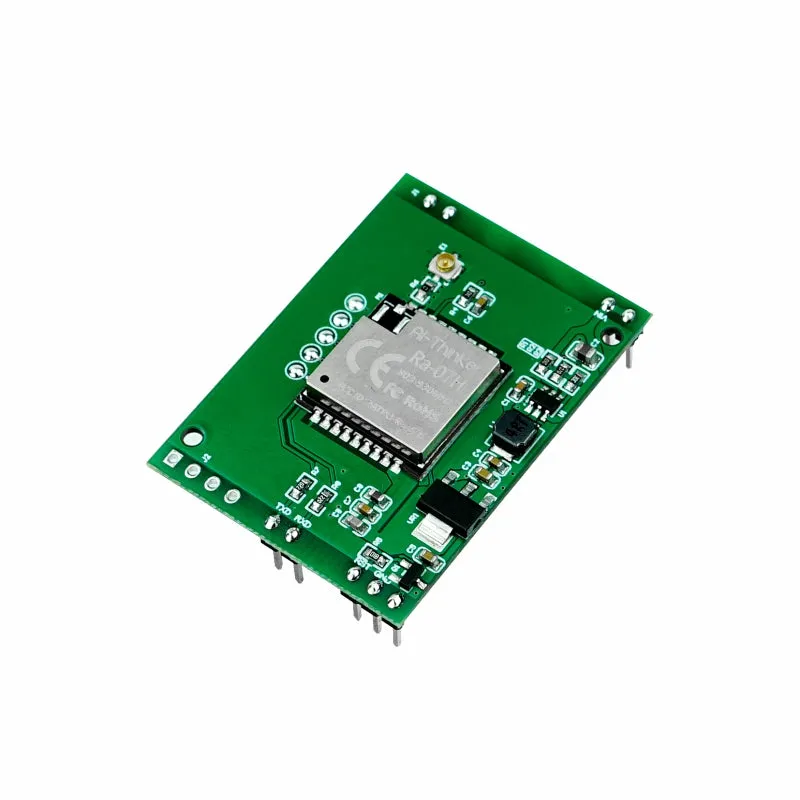

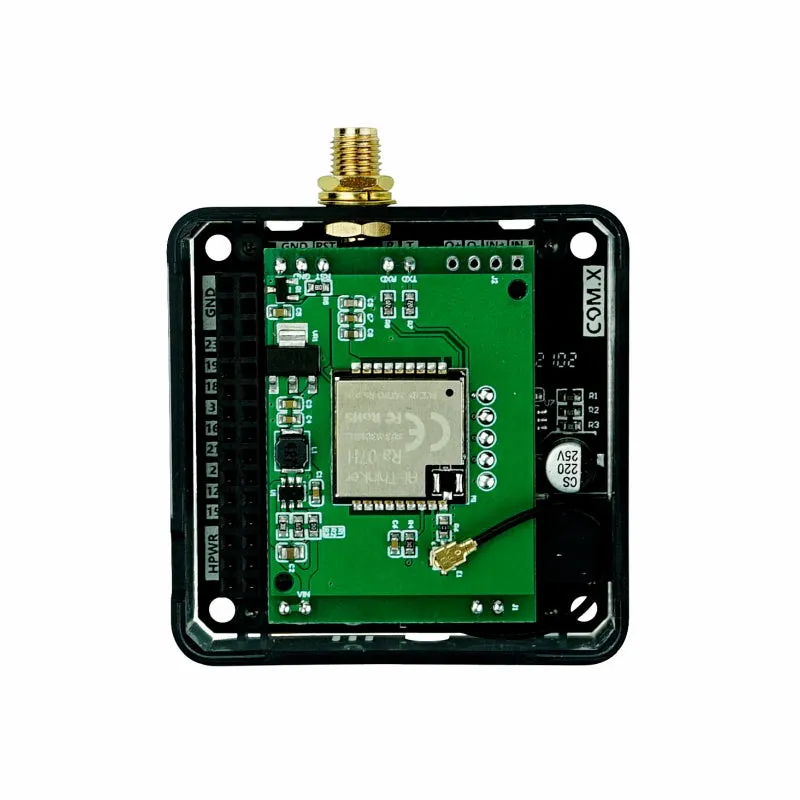

COM.LoRaWAN915 is a LoRaWAN communication module suitable for 915MHz frequency launched by M5Stack. The module adopts the ASR6501 solution, which supports long-distance communication and has both ultra-low power consumption and high sensitivity. The module integrates the LoRaWAN protocol stack and adopts a serial communication interface (using AT command set for control), and can be used as a collection node to access a large number of gateways for data collection and management.

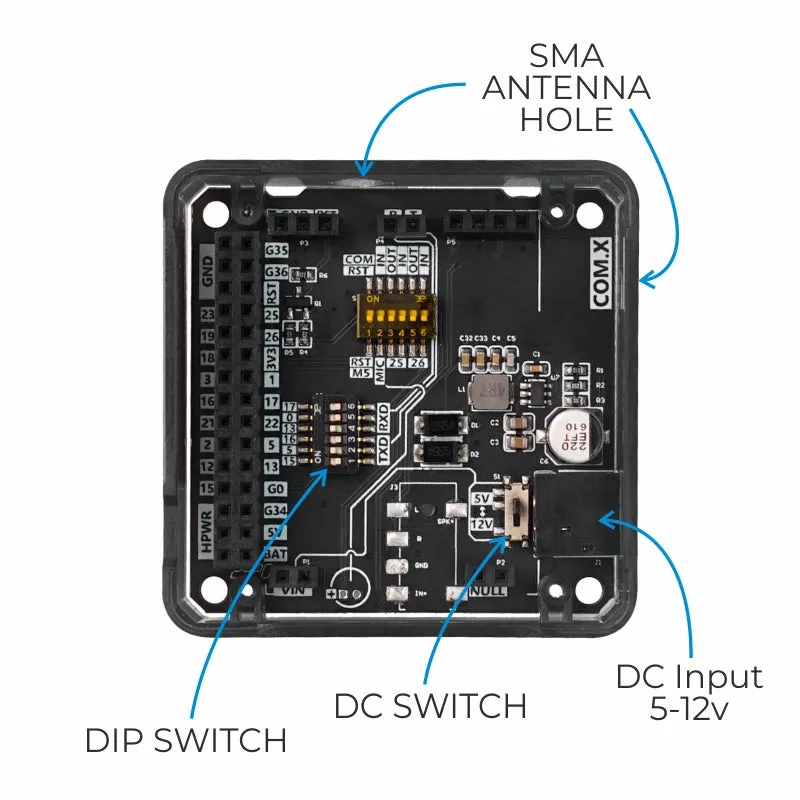

An external power supply is provided (5V-12V input can be adjusted by switching the dial on-board switches). The module fits for long distance low power IoT communication applications, such as deployment of environmental monitoring nodes.

Note:
This module supports US915 band plan only. NOT supports AU915.

Notice

When used with the FIRE main control, due to the PSRAM pin conflict, please switch the DIP switch pins of the module base to TX(0/13), RX(5/15), and the device can use USB/ External DC is used for power supply.

When used with Core2 series main control, due to the different order of the base pin array, COM.X base pins TX(16), RX(17) correspond to the actual pins TX(14), RX of the Core2 main control (13) The equipment needs to use external DC for power supply.
